SWAG Off Road 20 Ton Press Brake Kit - Heavy Duty DIY Metal Bender for Automotive Fabrication & Metalworking Projects - Perfect for Garage Workshops, Off-Road Vehicle Mods, and Industrial Applications

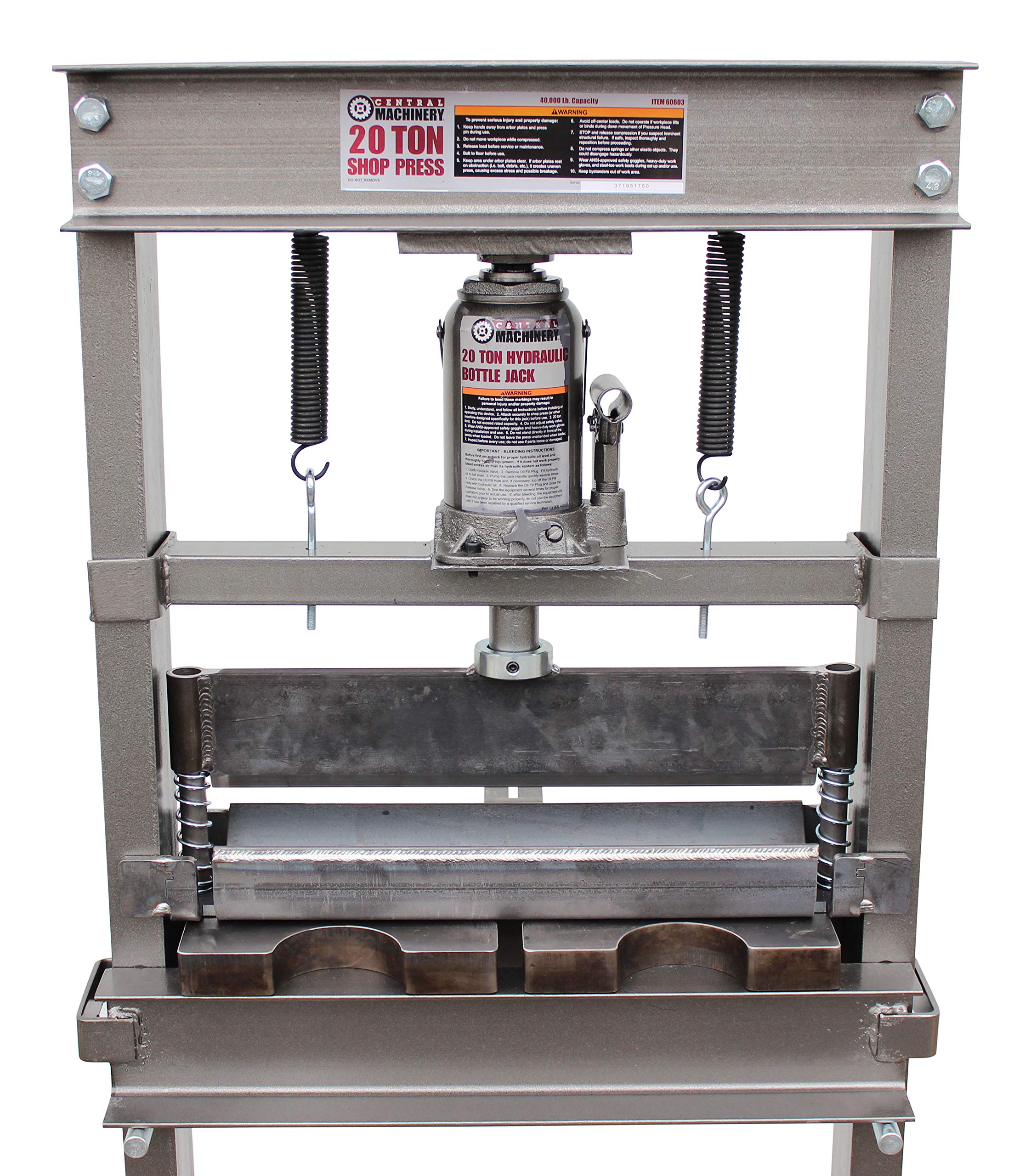

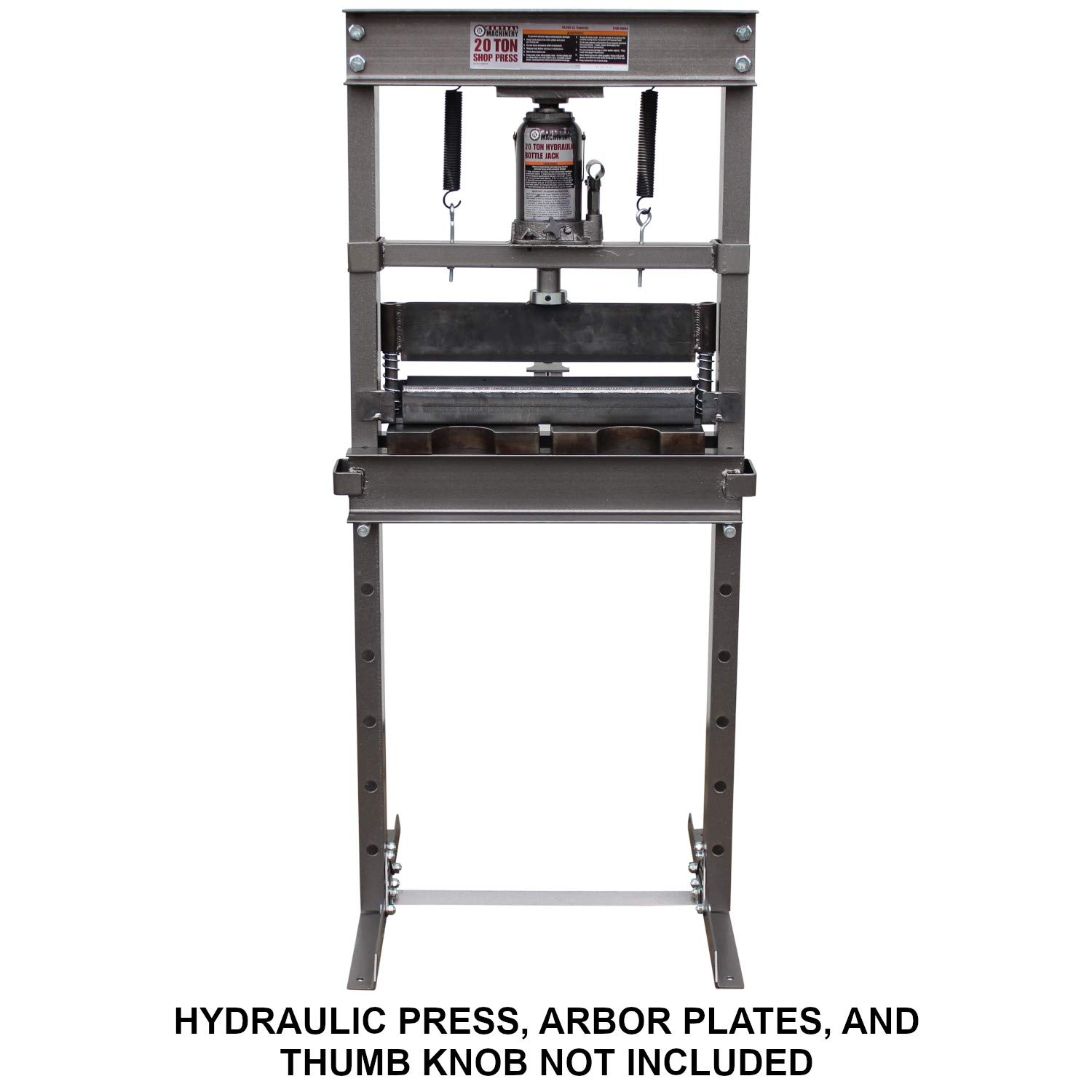

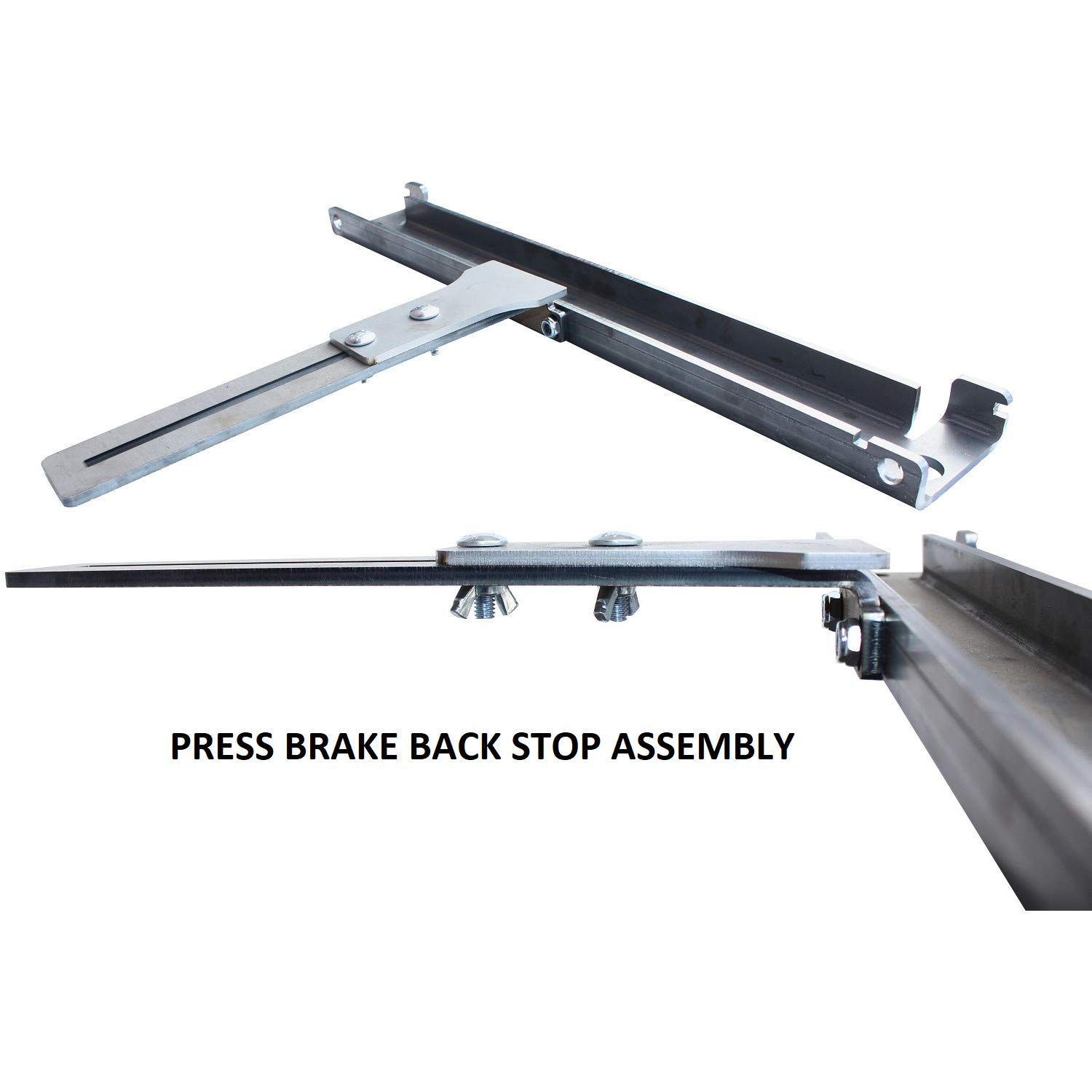

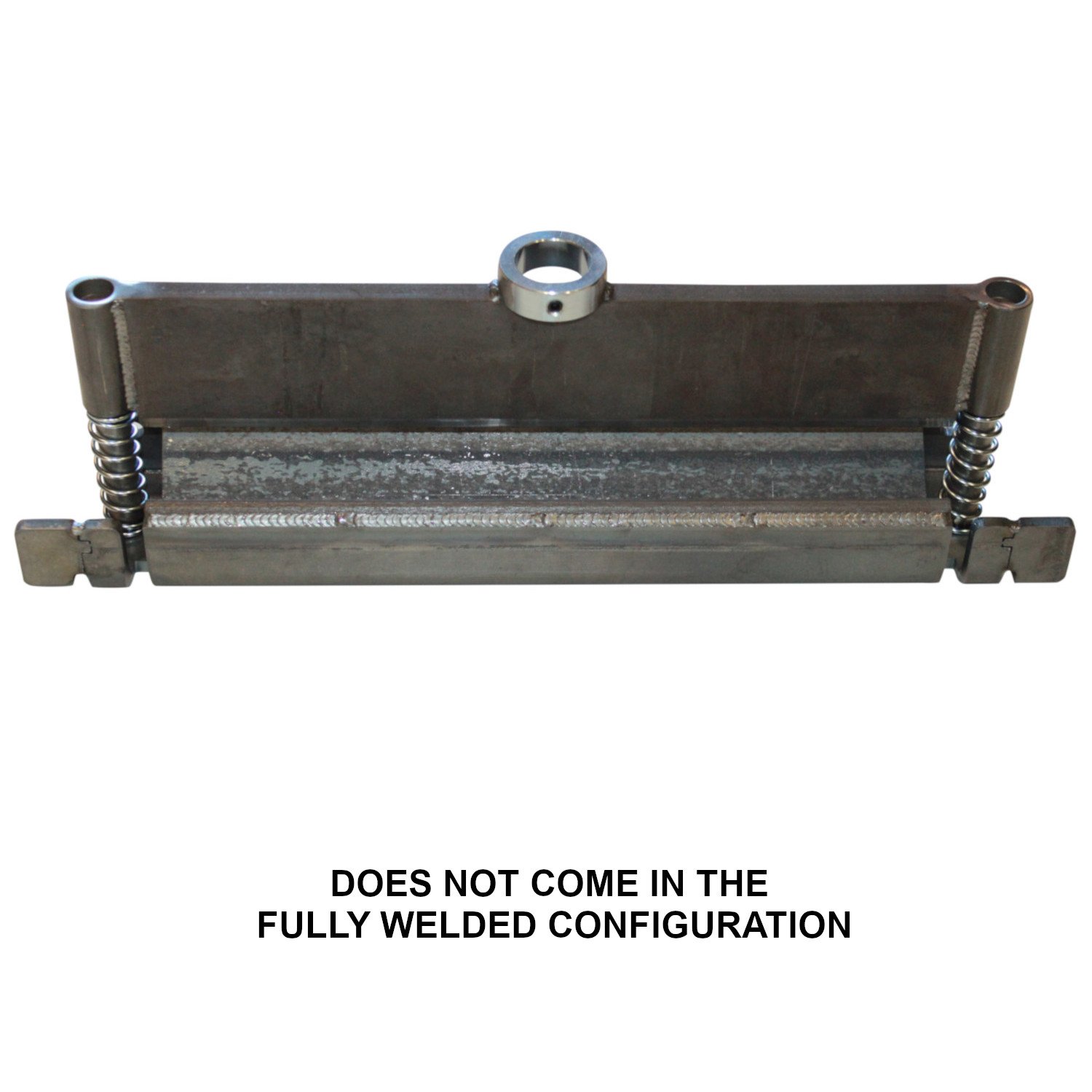

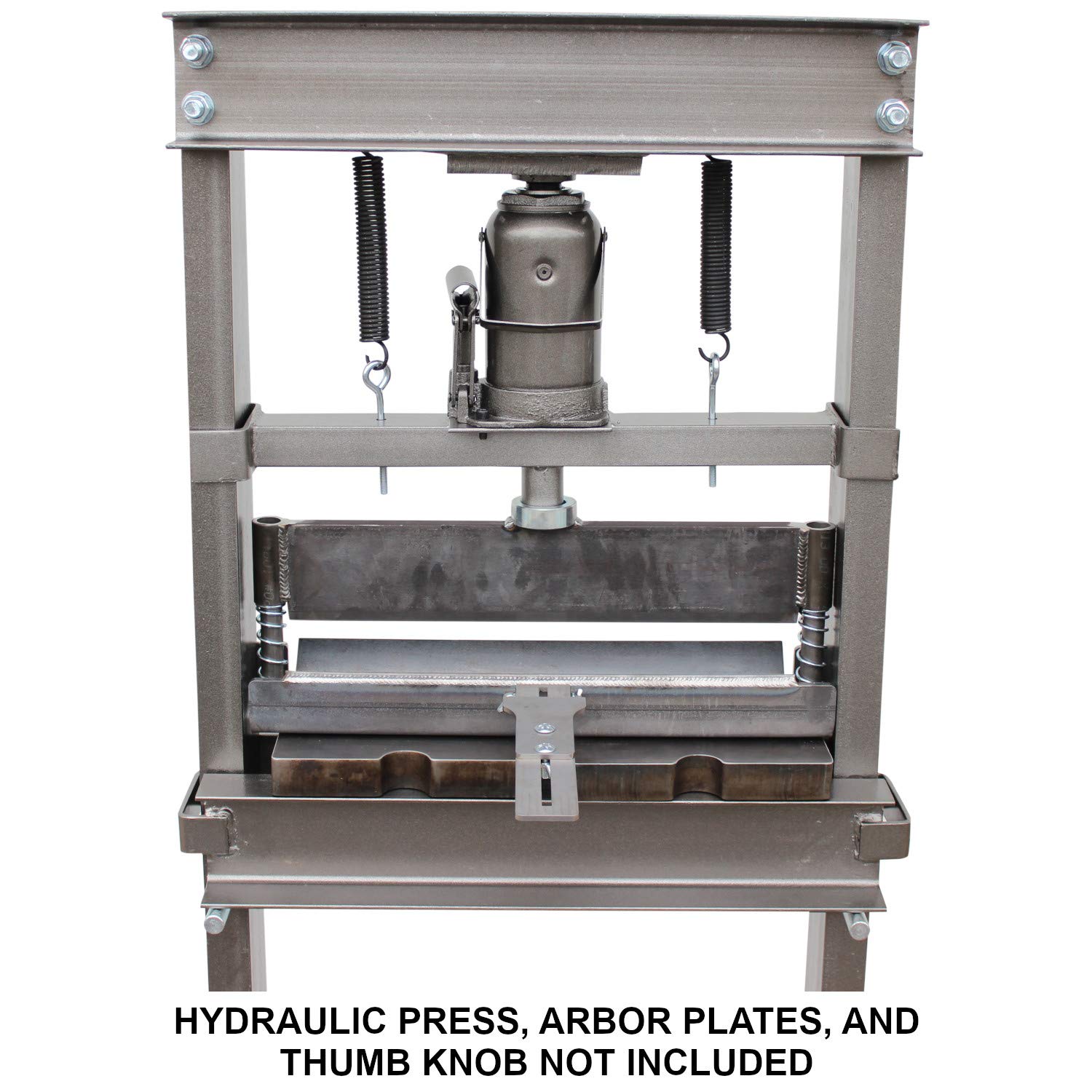

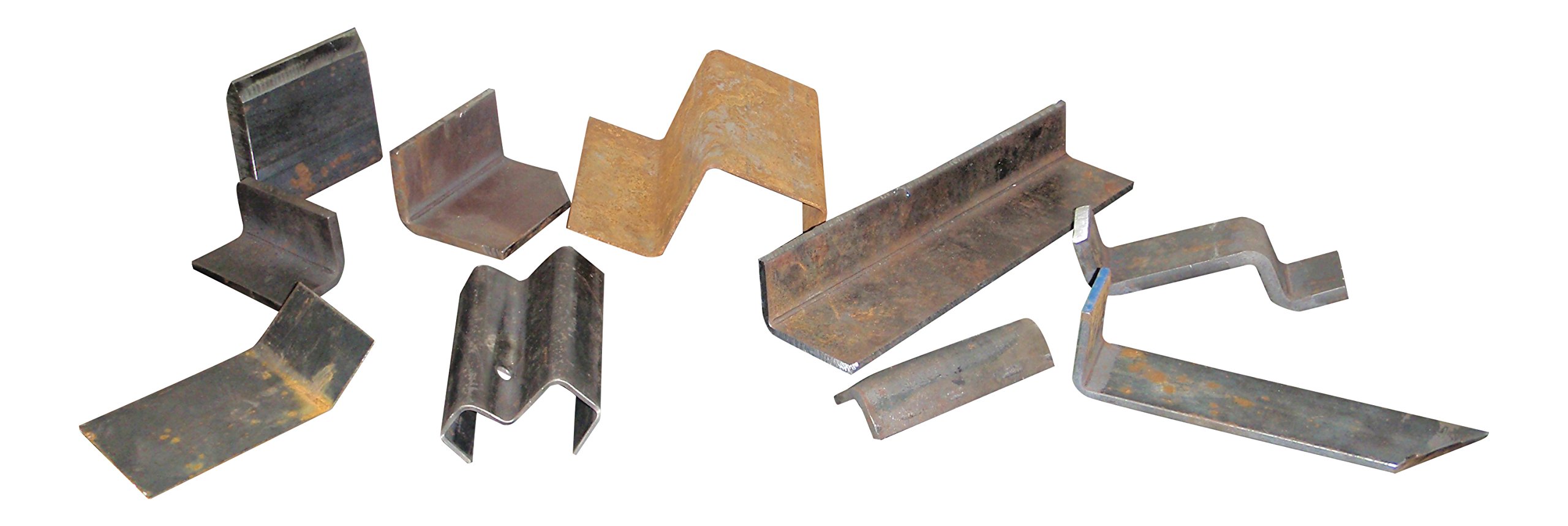

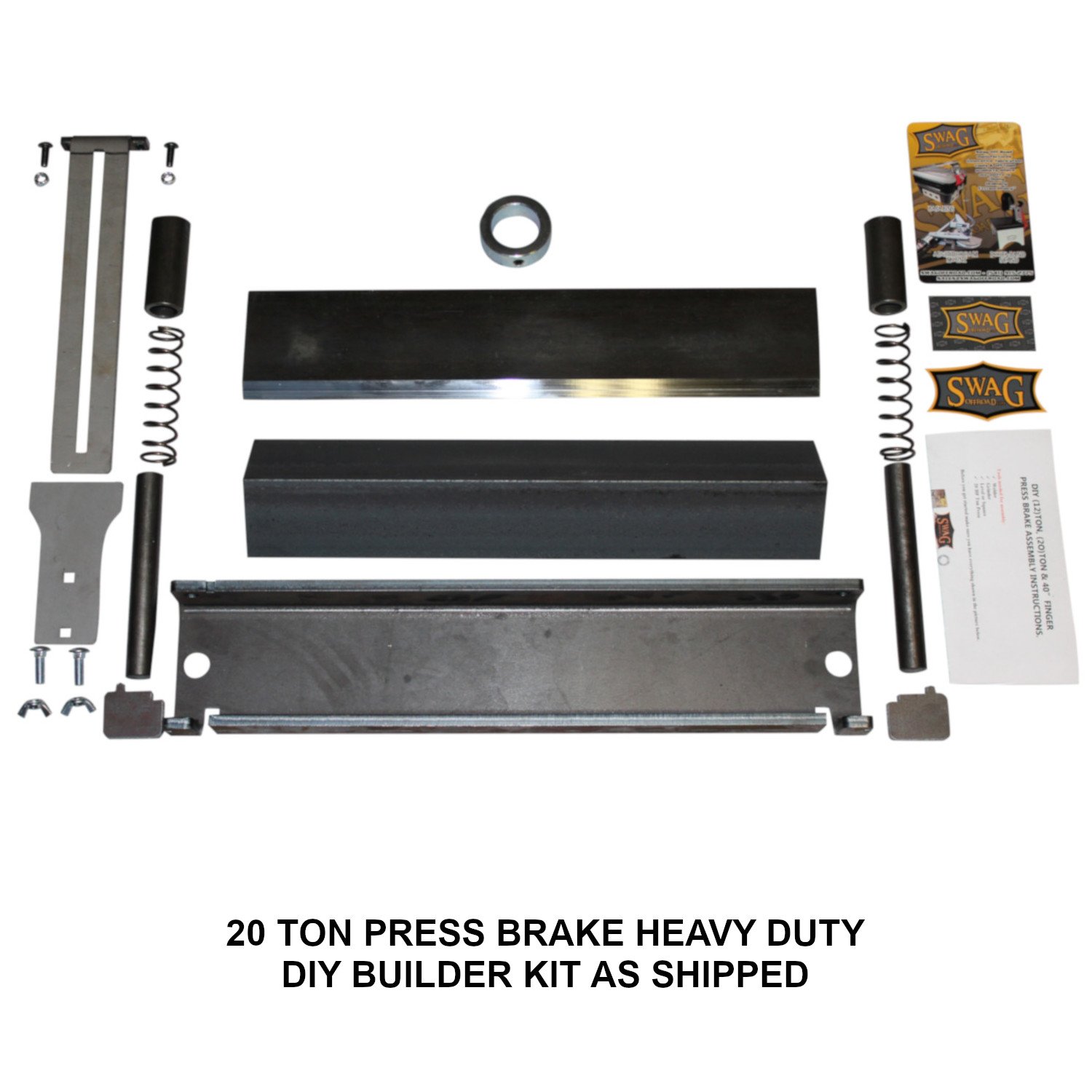

Heavy Duty 20 TON Press Brake DIY Builder Kit Press Brake kit comes unassembled, you do the final assembly and welding. Designed to fit the Harbor Freight 20 ton hydraulic press Item # 32879, 60603, or any Press that has at least 22.125" between the vertical uprights. Press brake kit includes an adjustable back stop for accurate and repeatable bends. The heavy duty press brake kit has the same quality construction and number of components as the standard press brake kit, however the differences are as follows. The bottom formed channel on the HD press brake kit is cut out of high strength 3/8" thick steel and the bottom "V" die of has a total width of 4" wide x 1/4" thick to allow for easier bending of thicker material. Max Bending Radius (deg.) 110Max. Bending Capacity 5/8" plateMax Bending Width 19.25" Total width of the brake is 22.125" wide Tools required for assembly, welder, grinder, level, small square. It Is capable of bending mild steel in the following length and thickness. 19" = Full bending width of the bottom die on anything 3/16" or thinner.15" in 1/4"13" in 5/16"11" in 3/8"6" in 1/2"3" in 5/8" Here at SWAG our Press Brakes are built for individuals looking for quality, 100% American made tools. Designed for those working with a limited budget and the need for custom metal fabrication. Product evolution and expansion has led us to Several different sizes and models of Brakes designed to meet a wide variety of needs. From our smallest, with a bending width of 13.50", to our Mammoth 50" Universal Finger Press Brake DIY Builder Kit with a total bending width of 49"! We strive to keep the needs of the everyday working man or Saturday shop hound at the forefront of our minds. SWAG Off Road InnovativeUniqueAuthenticEfficientIntegralHonorable We believe in our Motto "Doing Ordinary Extraordinary!" Since our inception, we have a long history of Service. We believe in doing business the old fashioned way; we actually answer our Phone! ___________________________________ Available Press Brake Accessories: __________________________________ Machined Arbor Press Plates (Pair) Cut out of high strength grade 50-A572 steel plate. These arbor press plates are sold as a pair and are designed to replace the junk cast arbor plates that are prone to shattering under heavy load. Every SWAG arbor press plate is machined on both sides to remove mill scale and sharp edges. We currently offer 4 different sizes of arbor plates 8.50'' X 10.00'' X 1.50'' Are the Ideal size for factory replacement of the 20 ton Harbor Freight cast arbor plates. The low cost cast arbor plates that are typical provided with hydraulic presses, often fail under shock loading. SWAG Digtal Angle & Level Gauge Take the guesswork out of bending sheet metal on your SWAG press bake kits. Just set the unit on a flat reference surface, press the ZERO button to calibrate the display then attach it to the metal you are forming and precisely bend sheet metal to the desired angle. The Angle Cube offers 0.2 degree accuracy with a resolution of 0.05 degrees at a range of 90 degrees. The large LCD screen makes it easy to read while strong magnets hold the unit to any steel or cast iron surface. Spare battery included, measures 2 3/8 Inch x 2 3/8 Inch x 1 3/8 Inch. "FLAT TOP" Adjustable Bottom V Die This simple concept allows you to easily adjust the gap between the bottom V die, by loosening two 5/16" bolts and siding the 3/8" thick laser cut plates in or out. This will allow for tighter bends on thinner materials and or allow you to bend much shorter pieces of material than what is currently offered with the SWAG standard or heavy duty press brake kits. The bottom steel plate has 4 threaded 5/16" holes and is laser cut out of 5/8" thick steel which sits upon the bottom die of the SWAG 20 ton press brake kits. The "Flat Top" is a self contained unit and can be removed or slid into position with in a few seconds.
